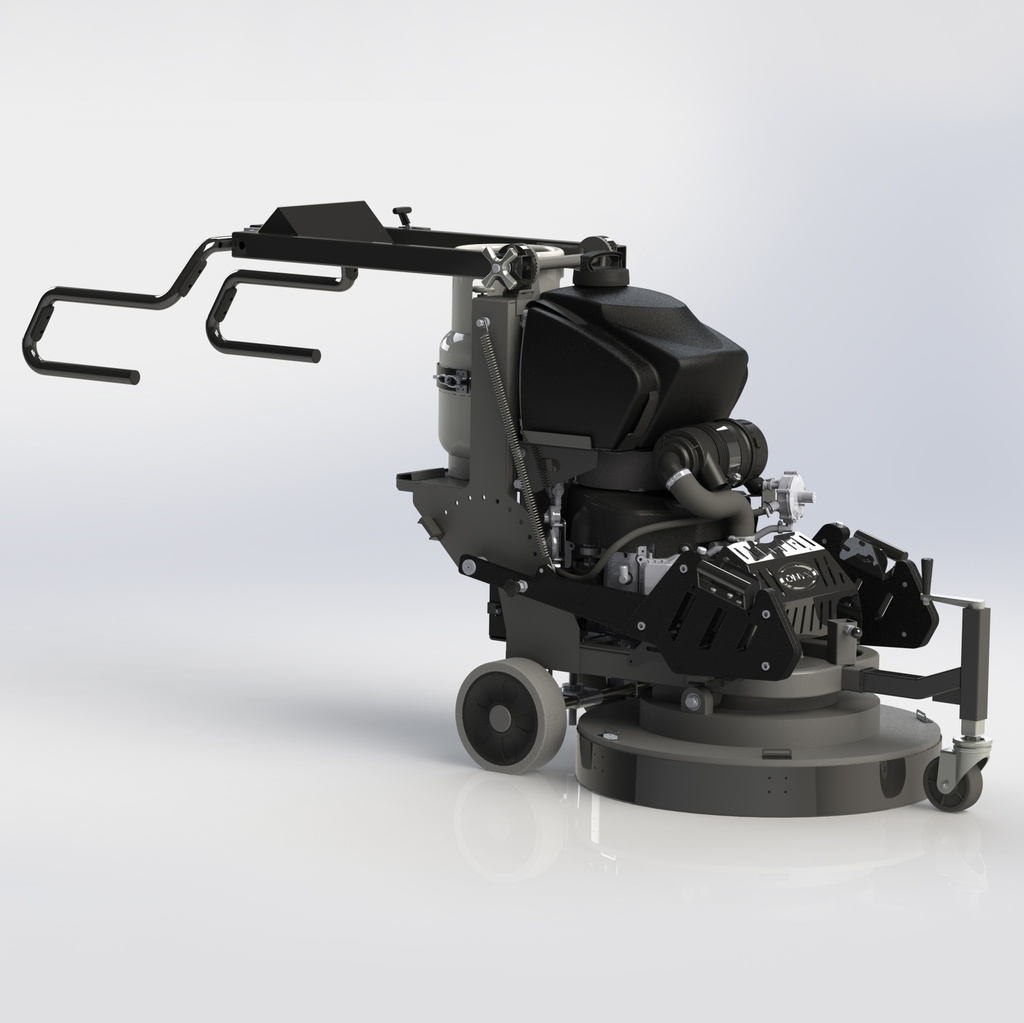

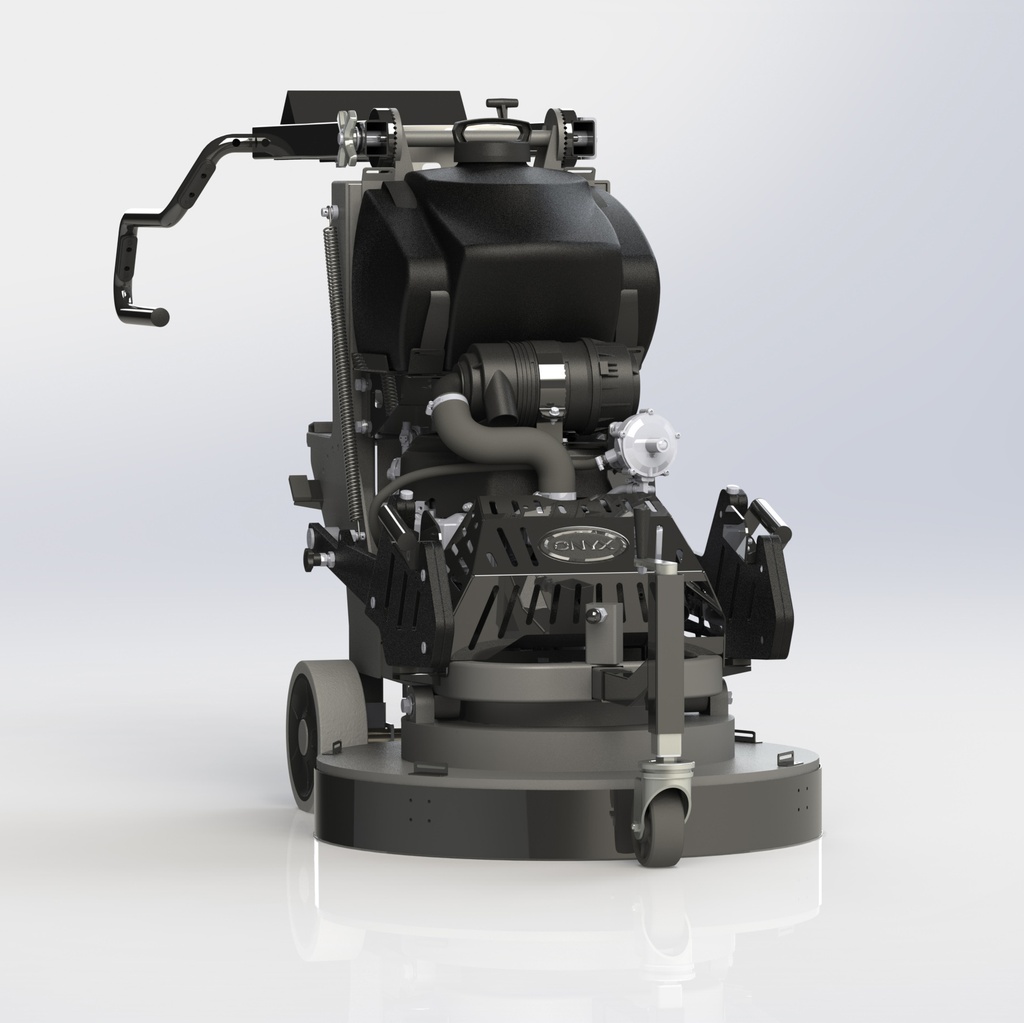

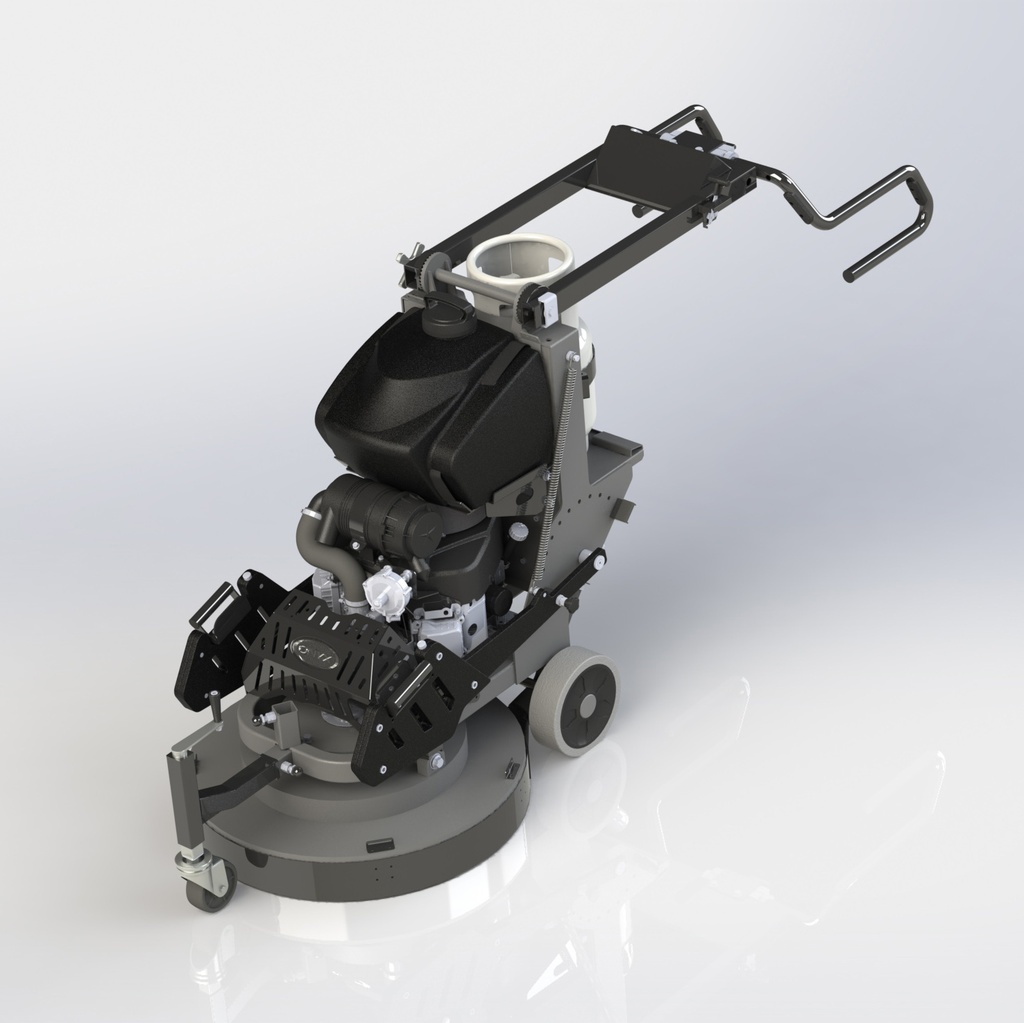

Z5 | 30-inch Propane Planetary Floor Machine
Typically needs 5 days for production
The Z5 is a propane powered, driven planetary floor machine built for high performance and reliable results. The planetary action is engineered for smooth operation and easy control, giving consistent outcomes across processes like polishing, grinding, honing, scrubbing, and stripping.
It shines as a polisher on concrete, terrazzo, and stone, operating at higher speeds than traditional grinders for faster maintenance, refurbishment, and repolishing. It’s also extremely effective as a stripper, using its powered planetary drive to cut through heavy layers of finish in a single pass.
Lighter and easier to handle than most grinders, the Z5 still delivers professional-level results. Its adjustable weight system makes it simple to tune performance and helps when rocking back to swap tooling. Designed to run wet or dry, with a foldable handle, integrated headlight, transport wheel, and adjustable water feed, the Z5 is practical in daily use. Pair it with HERO Z pads for a complete polishing system that’s efficient and predictable.
Specifications
| Product Function | Floor Polishing, Honing, Grinding, Stripping, Deep Cleaning, Rejuvenation |
| Working Motion | Active (Driven) Triple Planetary |
| Working Width | 30 inches |
| Pad / Brush Size | 11 inch x 3 |
| Power Supply | LX700 19hp Propane Engine |
| Run Time | 6 Hours Per 20lb Propane Cylinder |
| Productivity Rate | 30,000 SqFt per hour for deep cleaning/stripping, 4000 SqFt per hour per polishing step |
| Solution Tank Capacity | 12 Gallon |
| Pad / Brush Rotational Speed | 700-1400 RPM |
| Head Pressure | 130-330 lbs |
| Weight | 620 lbs |
| Operation Mode | Walk-Behind Pad Assist |
| Machine Wheels | 10 inch Solid Rubber Tread on Solid Aluminum Hub |
| Sound Level | Less than 87 dBA |
| Planetary Ratio | 12 Satellite Rotations : 1 Drum Rotation |
| Weight Kit | 2 x 50 lbs Swing Weights |
| Certification | EPA Certified Engine |

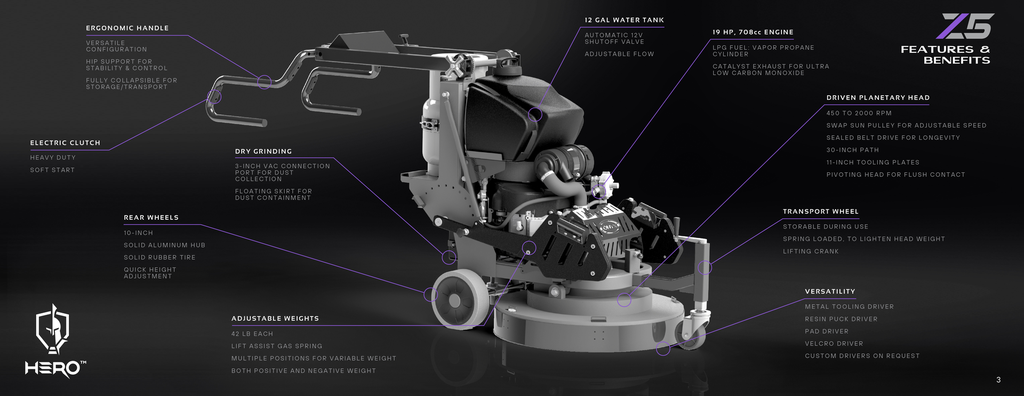

Key Features
- Frame: Heavy-duty steel construction with durable powder coat paint
- Ergonomic Handle Geometry: Highly Configurable Handle with Hip Support for Comfort, Control, and Maneuverability
- Pivoting Head: Insures Flush Floor Contact for Full and Even Coverage
- Simple: HERO Polishing System Provides Everything You Need with Proven Process to Achieve Outstanding Results Every Time
- Precision Water Control: Easily Adjust Water Flow from Operator Position w/ Dial that Controls Motorized Proportional Water Valve
- Head Skirt: Flexible Non-Marking, Non-Scratching Material to Prevent Splatter (when working wet) and Contain Dust (when working dry). Floating Design Stays on Floor and Height Easily Adjusts w/ Velcro Straps.
- Easy Rock Back: Optimal Machine Balance Allows Single Operator to Easily Rock Back Machine to Change Pad/Tooling or for Transport
- Planetary Drive: Belt Driven & Sealed for Longevity
- Swing Weights: Gas Spring Lift Assist, Multiple Positions for Both Positive and Negative Weight
- Front Transport Caster: Jacks Machine Up for Easy Transport, Detaches and Stores On-Board
- Dust Port: Connects to Industrial Dust Extractors/Vacuums for Dry Grinding & Polishing
- Electric Clutch: Heavy Duty Clutch with Soft Start, for Enhanced Performance and Belt Life
- Extreme Versatility: Compatible with a Range of Tooling: Polishing Pads, Resins, Metal Bond, Stripping Brushes | Adjustable Weight & Speed for Optimal Results.
