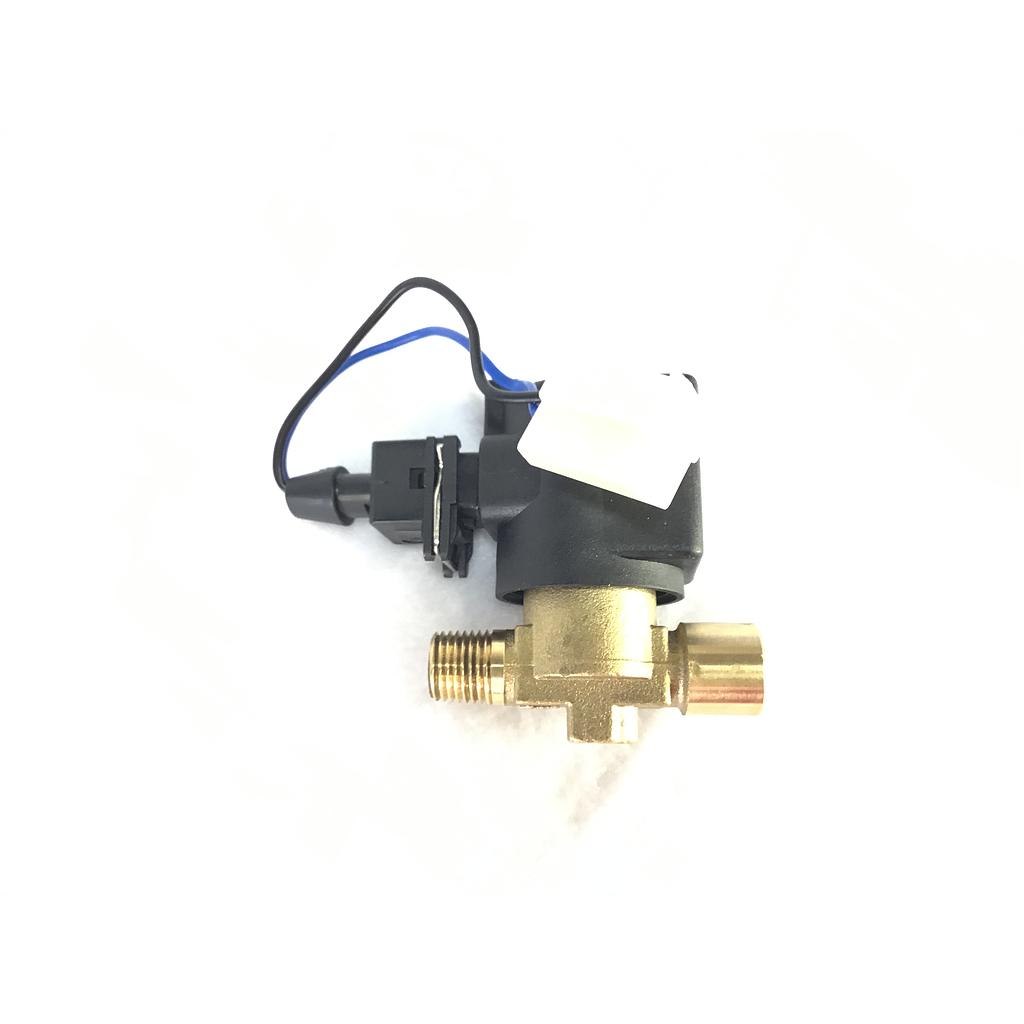

W10752 | Propane Solenoid Shutoff Valve "Lockoff", 12V, brass, 1/4 NPT
254 available to ship!
Product Specs:
ONYX Part No.: W10752
Product Type: Solenoid Valve
Fuel Type: LPG/Propane
Voltage: DC12V
Power Consumption: 13.5 W
Orifice Diameter: 2.5 mm
Body Material: Brass, HPb59-1
Seal Material: Fluororubber
Operating Temperature: 0~120℃
Operating Pressure: 0~350 PSI
Life Cycles: >10,000
Inlet Thread: 1/4 NPT Female
Outlet Thread: 1/4 NPT Male
Coil Resistance: 10.5Ω
Coil Wraps: 970
Wire Diameter: 0.38 mm
Temperature Rise: <85℃
Insulation Resistance: ≥20MΩ
Insulation Strength: 500V/min
